Regenerators made of ceramic honeycomb blocks recover heat from the combustion chamber, enabling the systems to operate with exceptional thermal efficiency and dependability.

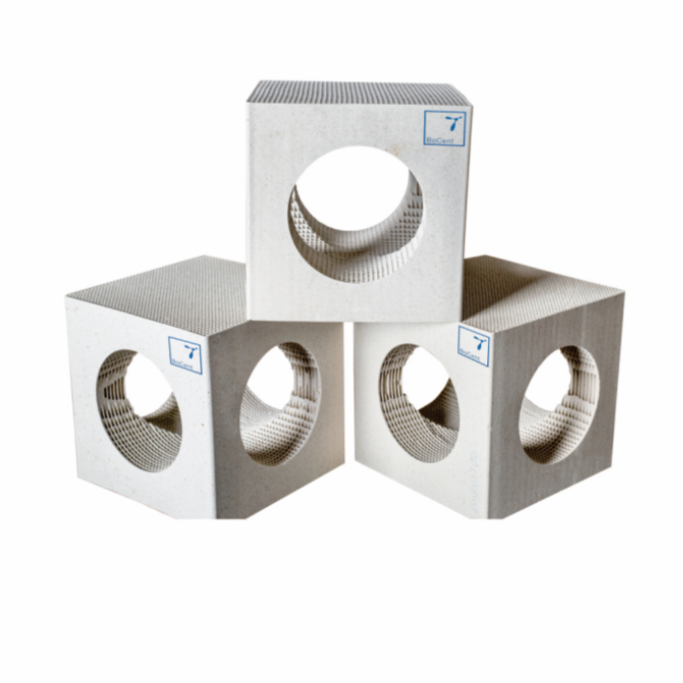

Air- Flow Hypo-dispersion Honeycomb blocks is a High-grade structured media , as one of Patented product from BoCent Brand manufactured by BoCent Advanced Ceramic Company. The special shape of with four sides holes,high open area and aerodynamic design makes it greatly increase the cross distribution of the lateral flow capacity of the air-flow , thus improved the heat utilization rate of heat exchange medias.





Material : Dense Alumina.




Characteristic

1. 4 sides  of honeycomb with holes, greatly increase the cross distribution of  the lateral flow capacity of the air-flow.
2. Make the temperature and pressure evenly distribution of RTO bed.
3. Optimize the flow distribution at the inlet of the bed, improved the heat utilization rate.
4. Suitable for air distribution in the pyrolysis zone.
5. Stable mechanically design, easy to install.


6. Not easy to block, low pressure drop.







Specification :

Size : 150*150*150mm

Cell : 43*43







Advantages:




Better distribution  , better heat exchange.

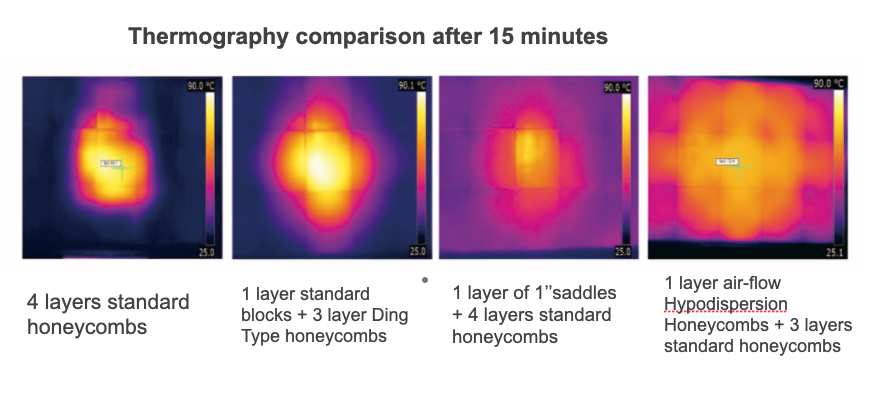

You can tell the difference from the four images , the Fourth one with 1 layer of air-flow Hypodispersion honeycombs and 3 layers of standard honeycombs shows more even in temperature distribution .
