Product Detail

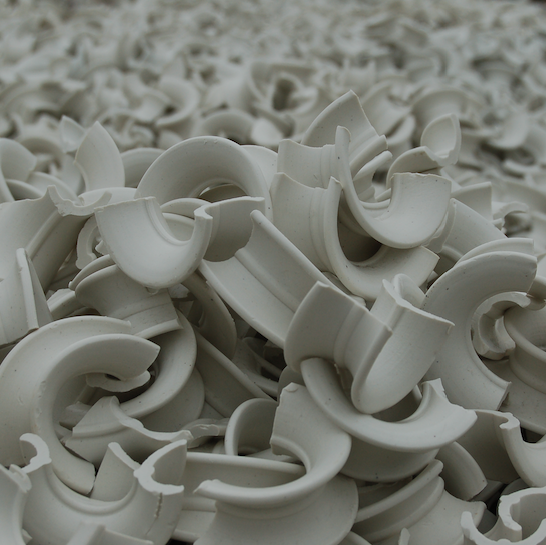

Loose ceramic shapes like ceramic saddles also called random RTO Ceramic heat exchange Media has the advantages of enhance efficiency, save energy, highest energy recovery per cubic foot ,increase output and improve quality, consume heat , important and effective measure in VOC destruction equipment.

Relative to other types of random packing,Ceramic saddles have proved to be the optimal shape for RTO random packing because it minimizes pressure drop ( for lower electricity consumption by the induction fan) and maximizes surface area ( for higher heat transfer efficiency).







Brief

Material	Size Available	Application
Alumina/ Normal Ceramic	3/4'' 1'', 1.5'',2'',3''	Applied on thermal equipment for energy saving within industry





Physical Property

Nominal Size(inch)	3/4’’	1’’	1.5’’	2’’	3’’
Numer per m3(k=1000)	146K	52K	12k	8243	2400
Package density(kg/m3)	670	650	600	580	550
Free volume(%)	75	77	80	79	75
Surface area(m2/m3)	350	254	180	120	91
Specific gravity	2.25-2.35g/cm			144lbs/ft3
Water absorption	<0.5%
Acid resistance	<4% weight loss
Max operating temp.	1100°C (1hour)
Moh’s Hardness	7-8scale
Thermal conductivity	0.9-1.0w/m.k
Specific heat	850-900j/kg°C
Crush strength	Average 240 lbs(ASTM C515-95)







Chemical Composition




Alumina Chemical Composition	Range in %
Al2O3	>60%
SiO2	30-35%
Fe2O3	<1%
CaO	<0.5%
K2O+Na2O	<2%
