Product Detail

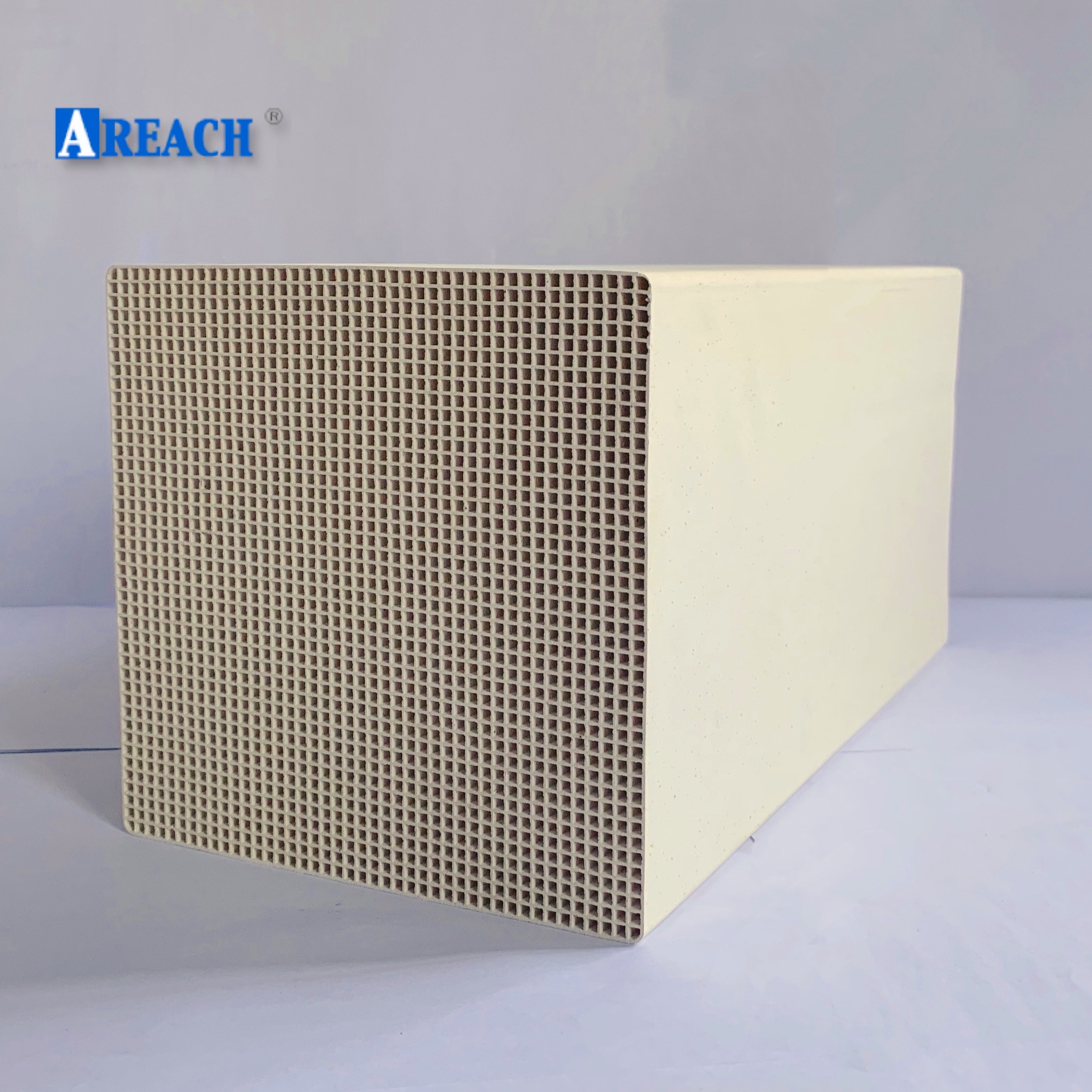

Structured ceramic heat transfer blocks also called thermal heat transfer ceramic media in some industrial applications, is a RTO heat exchanger provides superior thermal efficiency which applied in destruction of Volatile Organic Compounds (VOCs).







Quick Details

Material	Regular Sizes	Cell	Application
Alumina	100*100*100mm 100*150*150mm 150*150*150mm 150*150*300mm	43*43	RTO for industry , air pollution control equipment, VOCs Treatment




Alumina Block Physical Property

Alumina Block Physical Property	Range	Unit
Density	2.0-2.3	G/CM3
Water Absorption	≤20%
Coefficient of Thermal Expansion	≤5	x10-6k -1
Specific Heat (20-1000℃)	900-1150	J/Kg.K
Thermal Conductivity (20-1000℃)	1.5-2.0	W/m.k
Impact Thermal Resistance	≥300	℃/MIN
Strength （ A axis）	≥32	MPA
Compressive（ B axis）	≥8




Alumina Block Chemical Composition

Material Chemical Composition	Range in %
AL2O3/ Alumina Oxide	55-65
SiO2 /Silicon Oxide	25-35
MgO	1-3
Fe2O3+TiO2	3-5
Others	<5




Why Choose Alumina Blocks ？

• Economical costs.
• Low pressure loss.
• Widely used in industrial field.
• High heat storage.
• Low heat expansion .
• High specific heat capacity .
• High specific surface area .
• Low press drop.
• Low thermal resistance.
• Good thermal conductivity .
• Energy saving.









Package















Logistics









Certificate









FAQ

1. What’s the delivery time ?

A: About 4 weeks for regular alumina blocks. (43 cells ,150*150*300mm) for 20 GP container.

2. How doesAlumina block work in RTOs Equipment ?

A : It let the straight-through flow prevents dust build-up and damage from aggressive chemicals ,also bring out maximum heat recovery and low pressure loss .

3. Why different shapes of cell ?

A : It differs from heat efficiency Conductivity through the Honeycomb ceramic passage .

4. What is the RTOs ?

A : Regenerative Thermal Oxidizer (RTO) is an industrial system that destroys volatile organic compounds (VOC’s) in process exhaust air before it pollutes the environment.

5.  Causes of ceramic block damage.

A : Impact , thermal shock damage , rapid steam vapor explosion,

6. How does monolith blocks work in RTOs ?

A: the Alumina blocks store the heat generated by the decomposition of VOCs, and uses the thermal energy stored in the alumina blocks to pre-heat and decompose the untreated VOCs, thereby achieving high thermal efficiency.
