RTO relied on a range of materials for heat recovery, including ceramic blocks and saddles.

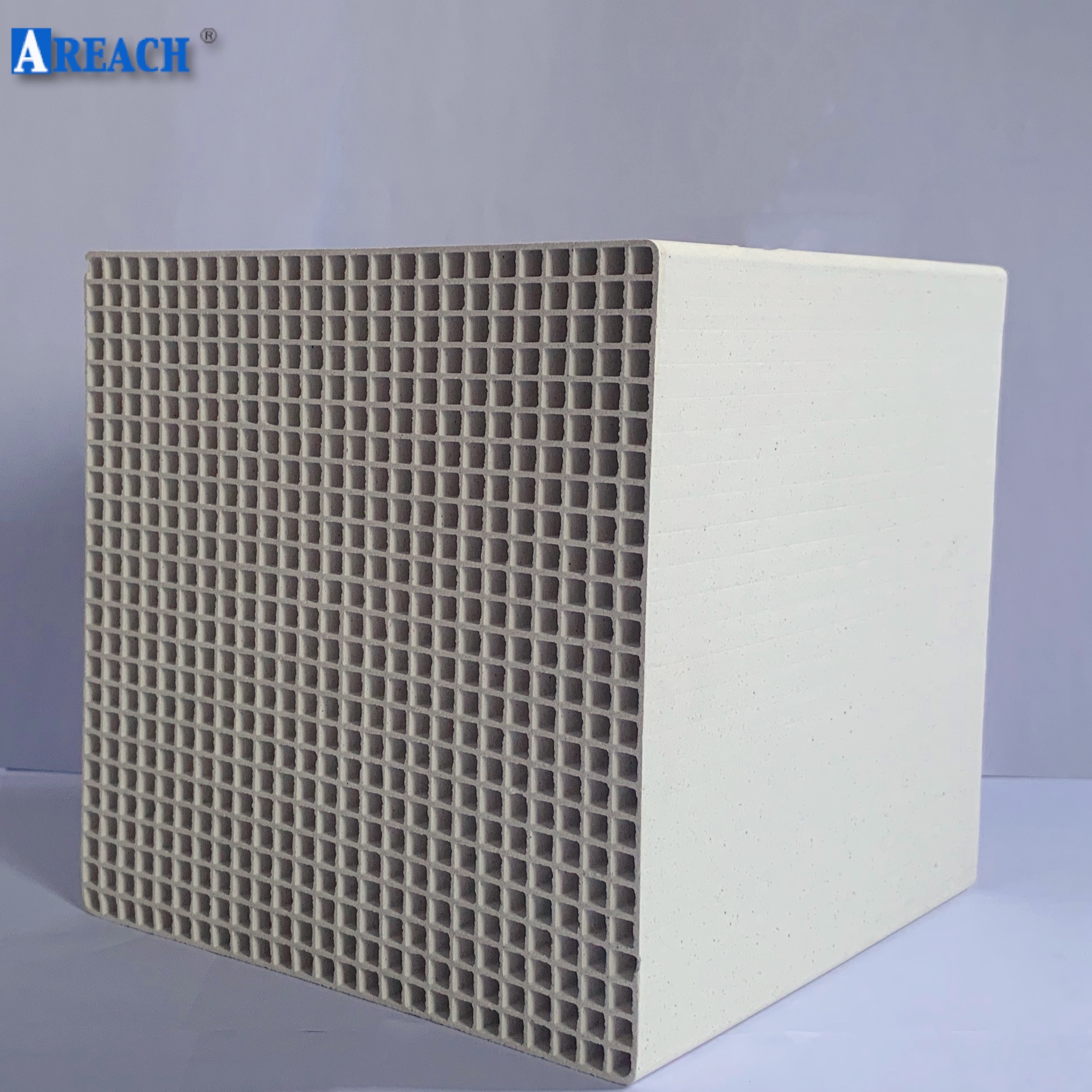

Alumina (Ceramic) Block as the classic ceramic structured packing of RTO ceramic heat exchange medias, also one kind of industrial porous ceramics with many passable parallel channels are ramified over its inside. It installed most in units bed designs of Regenerative Thermal oxidation to generate adequate thermal efficiency.










Quick Details




Material	Regular size	Cell	Application
Alumina	100*100*150mm 100*150*150mm 150*150*150mm 150*150*300mm	25*25	RTO for industry , air pollution control equipment, VOCs Treatment



Alumina Block Physical Property




Alumina Block Physical Property	Range	Unit
Density	2.0-2.3	G/CM3
Water Absorption	≤20%
Coefficient of Thermal Expansion	≤5	x10-6k -1
Specific Heat (20-1000℃)	900-1150	J/Kg.K
Thermal Conductivity (20-1000℃)	1.5-2.0	W/m.k
Impact Thermal Resistance	≥300	℃/MIN
Strength （ A axis）	≥32	MPA
Compressive（ B axis）	≥8





Alumina Block Chemical Composition

Material Chemical Composition	Range in %
AL2O3/ Alumina Oxide	55-65
SiO2 /Silicon Oxide	25-35
MgO	1-3
Fe2O3+TiO2	3-5
Others	<5







Why Choose Alumina Blocks ？

• Economical costs.
• Low pressure loss.
• Widely used in industrial field.
• High heat storage.
• Low heat expansion .
• High specific heat capacity .
• High specific surface area .
• Low press drop.
• Low thermal resistance.
• Good thermal conductivity .
• Energy saving.









Package















Logistics









Certificate









FAQ

1. What’s the delivery time ?

A: About 4 weeks for regular alumina blocks. (43 cells ,150*150*300mm) for 20 GP container.

2. How doesAlumina block work in RTOs Equipment ?

A : It let the straight-through flow prevents dust build-up and damage from aggressive chemicals ,also bring out maximum heat recovery and low pressure loss .

3. Why different shapes of cell ?

A : It differs from heat efficiency Conductivity through the Honeycomb ceramic passage .

4. What is the RTOs ?

A : Regenerative Thermal Oxidizer (RTO) is an industrial system that destroys volatile organic compounds (VOC’s) in process exhaust air before it pollutes the environment.

5.  Causes of ceramic block damage.

A : Impact , thermal shock damage , rapid steam vapor explosion,

6. How does monolith blocks work in RTOs ?

A: the Alumina blocks store the heat generated by the decomposition of VOCs, and uses the thermal energy stored in the alumina blocks to pre-heat and decompose the untreated VOCs, thereby achieving high thermal efficiency.
