Product Detail

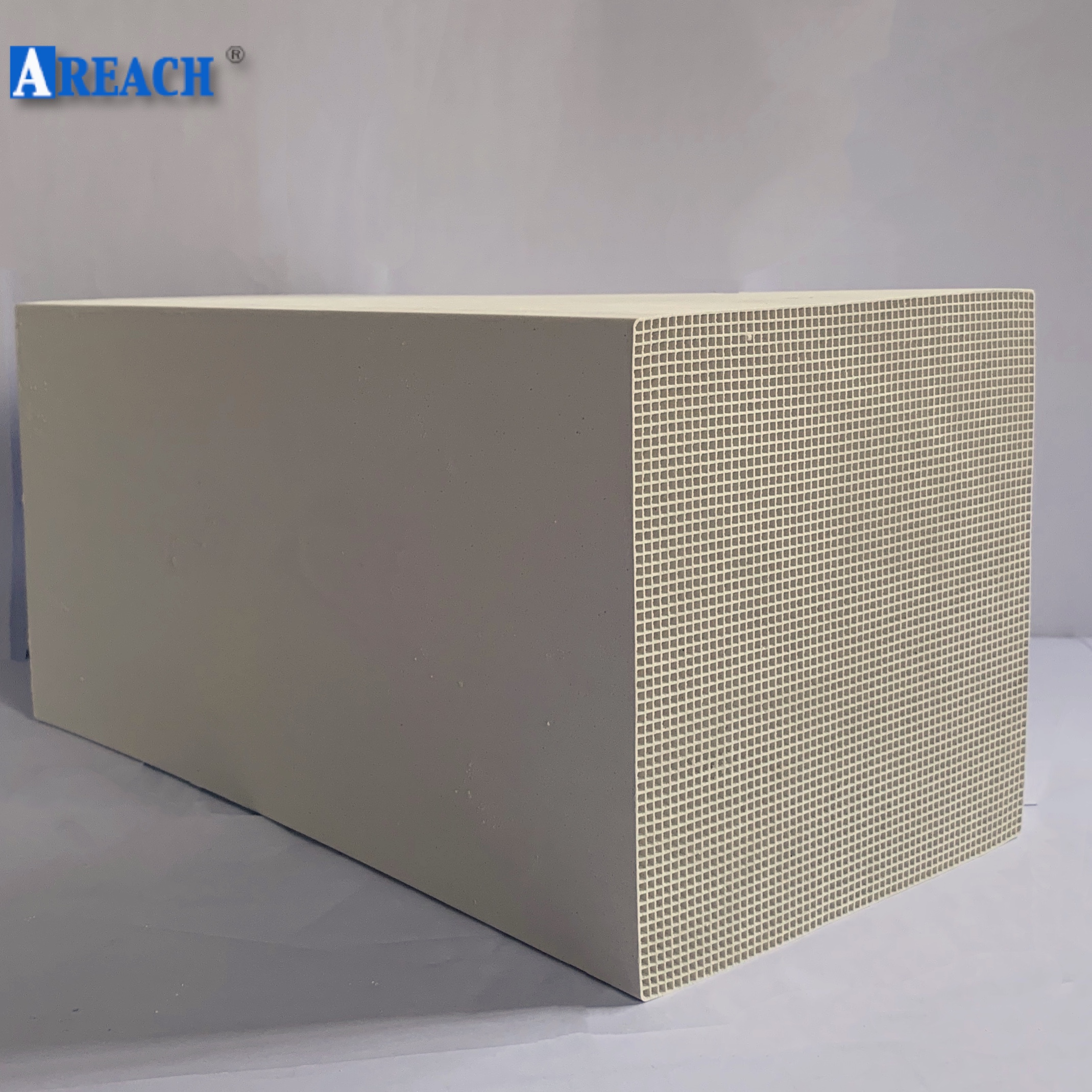

Ceramic honeycombs have proven their value as the most efficient heat storage media for regenerative use.

As a heat exchange media / re-circulation heat exchangers , Mullite material honeycombs are widely used for his high-performance of thermal shock resistance , higher AL content and lower coefficient of heat expansion comparing with alumina and dense alumina material, which has been widely used in heat recovery systems in RTO equipments among industrial fields.










Quick Details

Material	Regular sizes	Cell	Application
Mullite	100*100*100MM 100*150*150MM 150*150*150MM 150*150*300MM	60*60	RTO equipment, VOCs treatment






Physical property

Mullite Block	Range in	Unit
Density	2.0-2.5	G/CM3
Water Absorption	15-25	%
Coefficient of thermal Expansion(20-800℃)	≤5	x10-6k-1
Specific Heat(20-1000℃)	1000-1150	J/KG.K
Thermal Conductivity (20-1000℃)	1.5-2.0	W/M.K
Impact Thermal Resistance	≥350	℃/MIN
Strength ( A Axis )	≥28	MPA
Compressive ( B Axis )	≥8





Chemical Composition

Material Chemical	Rang In %
Alumina Oxide	60-70%
SiO2/Silicon Oxide	25-35%
MgO	0-1%
Fe2O3+ TiO2	1-3%
Others	<5%





Advantages

1. Excellent thermal conductivity .

2. With 65% AL content.

3. Excellent Thermal shock resistance.

4. Low pressure drop.

5. Low maintenance  costs.

6. Higher working temperature up to 1450℃.

7. Heat storage.

8. Lower coefficient heat of expansion.







Package










Certificate













Installation Tips.




1.Try to put the blocks in order when you install the blocks.

2. Keep expansion gap every 1 centimeter per 1meter evenly distributed when place the blocks.
