Product Detail

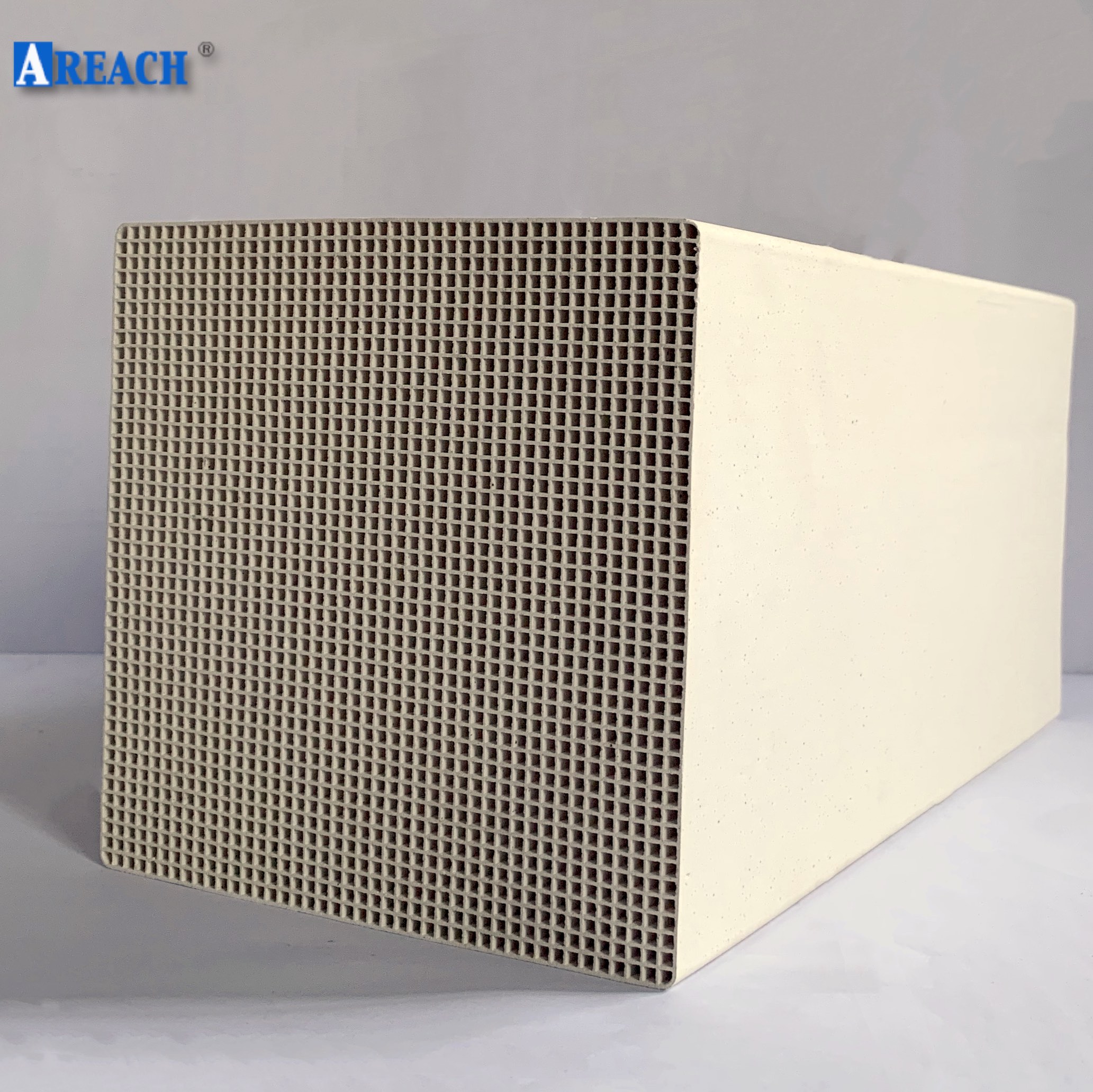

As a packing elements ,Mullite Block are superior in better thermal shock resistance , higher AL content , good crack resistance and lower coefficient of heat expansion comparing with alumina and dense alumina material, which has been widely used in thermal treatment of RTO equipments among industrial fields.

Ceramic accumulators especially Mullite ceramic material blocks shaped with straight through, square channels are preferred to be used in aggressive media due to the high chemical resistance and thermal stability.




Quick Details

Material	Regular sizes	Cell	Application
Mullite	100*100*100MM 100*150*150MM 150*150*150MM 150*150*300MM	43*43	RTO equipment, VOCs treatment






Physical property

Mullite Block	Range in	Unit
Density	2.0-2.5	G/CM3
Water Absorption	15-25	%
Coefficient of thermal Expansion(20-800℃)	≤5	x10-6k-1
Specific Heat(20-1000℃)	1000-1150	J/KG.K
Thermal Conductivity (20-1000℃)	1.5-2.0	W/M.K
Impact Thermal Resistance	≥350	℃/MIN
Strength ( A Axis )	≥28	MPA
Compressive ( B Axis )	≥8





Chemical Composition

Material Chemical	Rang In %
Alumina Oxide	60-70%
SiO2/Silicon Oxide	25-35%
MgO	0-1%
Fe2O3+ TiO2	1-3%
Others	<5%





Advantages

1. Excellent thermal conductivity .

2. With 65% AL content.

3. Excellent Thermal shock resistance.

4. Low pressure drop.

5. Low maintenance  costs.

6. Higher working temperature up to 1450℃.

7. Heat storage.

8. Lower coefficient heat of expansion.







Package










Certificate













Installation Tips.




1.Try to put the blocks in order when you install the blocks.

2. Keep expansion gap every 1 centimeter per 1meter evenly distributed when place the blocks.
