Product Detail

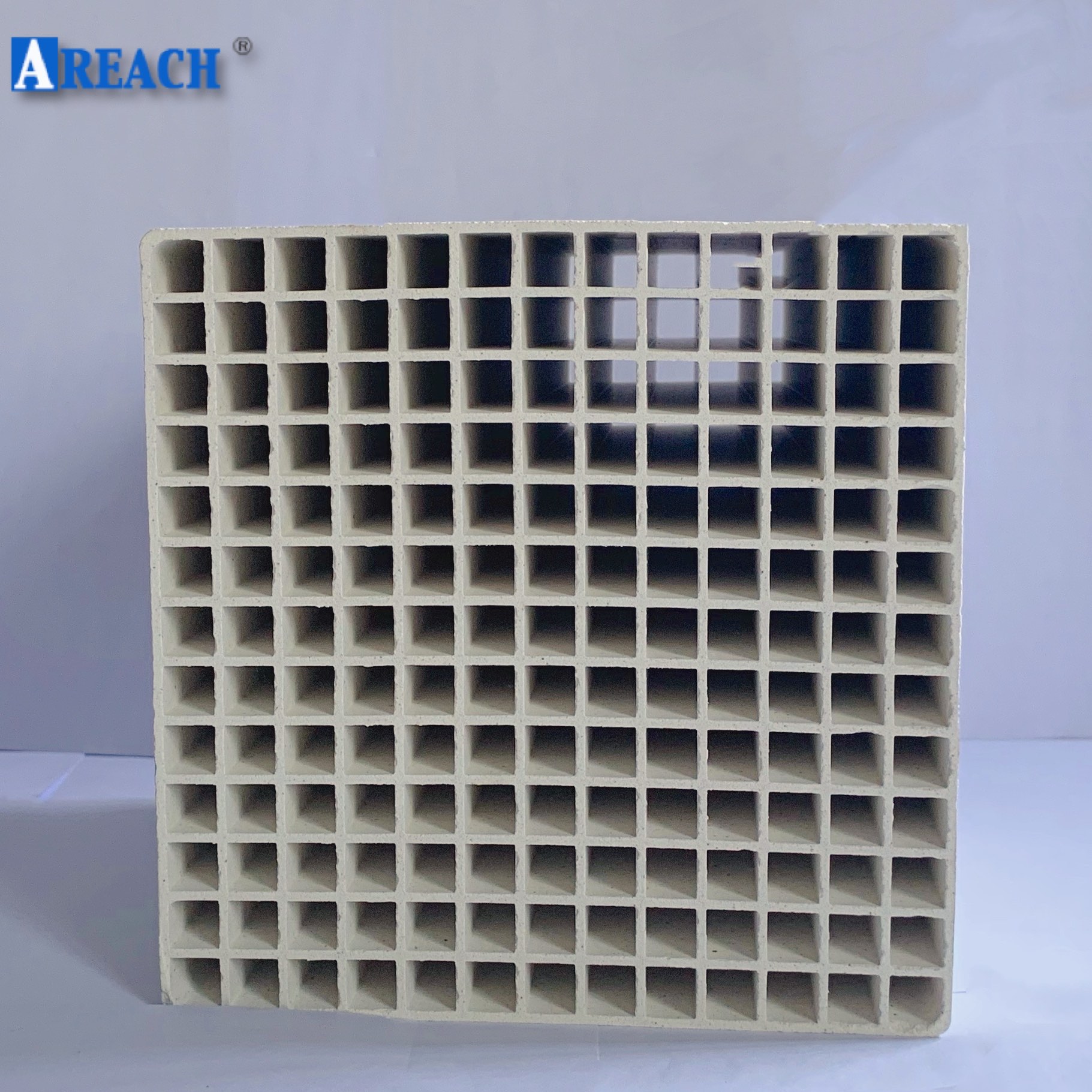

Dense Alumina is a heat absorbing ceramic mass.

It is characterized by a high degree of stability and a very high degree of heat resistance at the same time. Also it is prior to other materials for its water absorption which makes it a perfect option to applied in RTO products applies to recover thermal energy in RTO (Regenerative Thermal Oxidizers) , Volatile Organic Compounds (VOCs) and odorous emissions etc.







The combination of high heat recovery with low-pressure drop.




Quick Details

Material	Regular sizes	Cell	Application
Dense Alumina	100*100*100mm 100*150*150mm 150*150*150mm 150*150*300mm	13*13	RTO for industry , air pollution control equipment




Physical Property

Dense Alumina Block Physical Property	Range	Unit
Density	2.4-2.7	G/CM3
Water Absorption	≤ 2	%
Coefficient of thermal expansion（20-1000℃）	≤ 5	x10-6k -1
Specific Heat (20-1000℃)	1000-1150	J/Kg.K
Thermal Conductivity (20-1000℃)	1.5-2.5	W/m.k
Impact Thermal Resistance	≥300	℃/Min
Strength （ A axis）	≥34	MPA
Compressive	≥8





Chemical Composition

Material Chemical Composition	Range in %
AL2O3/ Alumina Oxide	55-65%
SiO2 /Silicon Oxide	25-35%
MgO	3-5%
Fe2O3+TiO2	2-4 %
Others	<5%



Advantages
• Higher heat storage.
• Higher Alkali resistance .
• Small resistance loss.
• Outstanding crack-resistance.
• Low heat expansion .
• High specific heat capacity .
• High thermal shock resistance.
• Good Thermal Conductivity .
