Product Detail

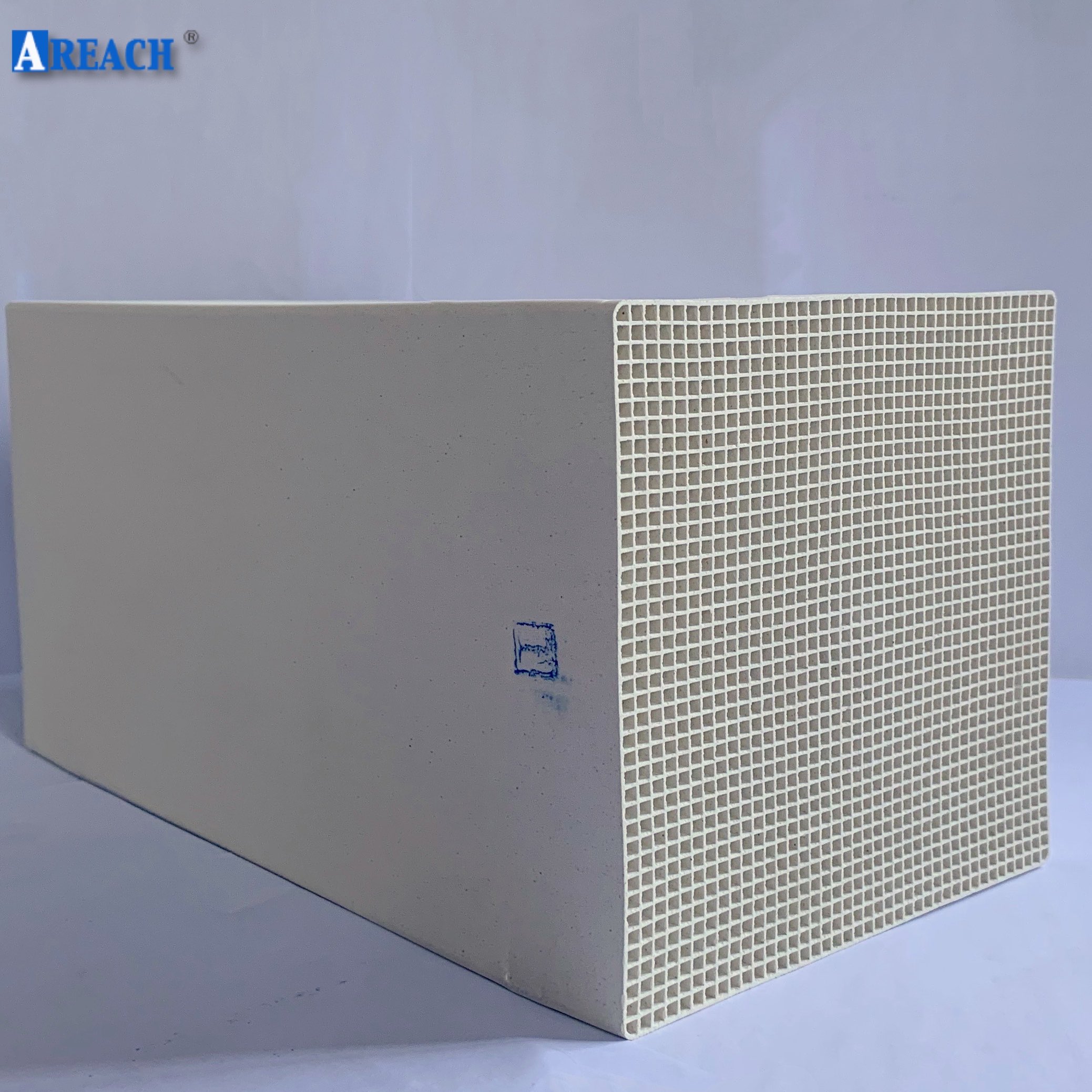

Dense Alumina blocks as a reliable heat exchange media, is the key components of the thermal storage system widely used in RTO (Regenerative Thermal Oxidizers) media and maintenance or some alkali applications because of his wear and corrosion protection and energetic performance.




Honeycomb ceramic (Dense Alumina Blocks) provide the most economical combination of pressure drop, thermal efficiency and destruction efficiency.

The regenerative thermal oxidizer (RTO) converts volatile organic compounds (VOCs) and hazardous air pollutants (HAPs) to carbon dioxide and water vapor through thermal oxidation.













Quick Details

Material	Regular Sizes	Cell	Application
Dense Alumina	100*100*100mm 100*150*150mm 150*150*150mm 150*150*300mm	40*40	RTO for industry , air pollution control equipment

Physical Property

Dense Alumina Block Physical Property	Range	Unit
Density	2.4-2.7	G/CM3
Water Absorption	≤ 2	%
Coefficient of thermal expansion（20-1000℃）	≤ 5	x10-6k -1
Specific Heat (20-1000℃)	1000-1150	J/Kg.K
Thermal Conductivity (20-1000℃)	1.5-2.5	W/m.k
Impact Thermal Resistance	≥300	℃/Min
Strength （ A axis）	≥34	MPA
Compressive	≥8




Chemical Composition




Material Chemical Composition	Range in %
AL2O3/ Alumina Oxide	55-65%
SiO2 /Silicon Oxide	25-35%
MgO	3-5%
Fe2O3+TiO2	2-4 %
Others	<5%



Advantages




• Higher heat storage.
• Higher Alkali resistance .
• Small resistance loss.
• Outstanding crack-resistance.
• Low heat expansion .
• High specific heat capacity .
• High thermal shock resistance.
• Good Thermal Conductivity .
• Resolve siloxane clogging, cut costs and boost uptime in VOCs emission treatment process.




Production Process






Package
