Product Detail

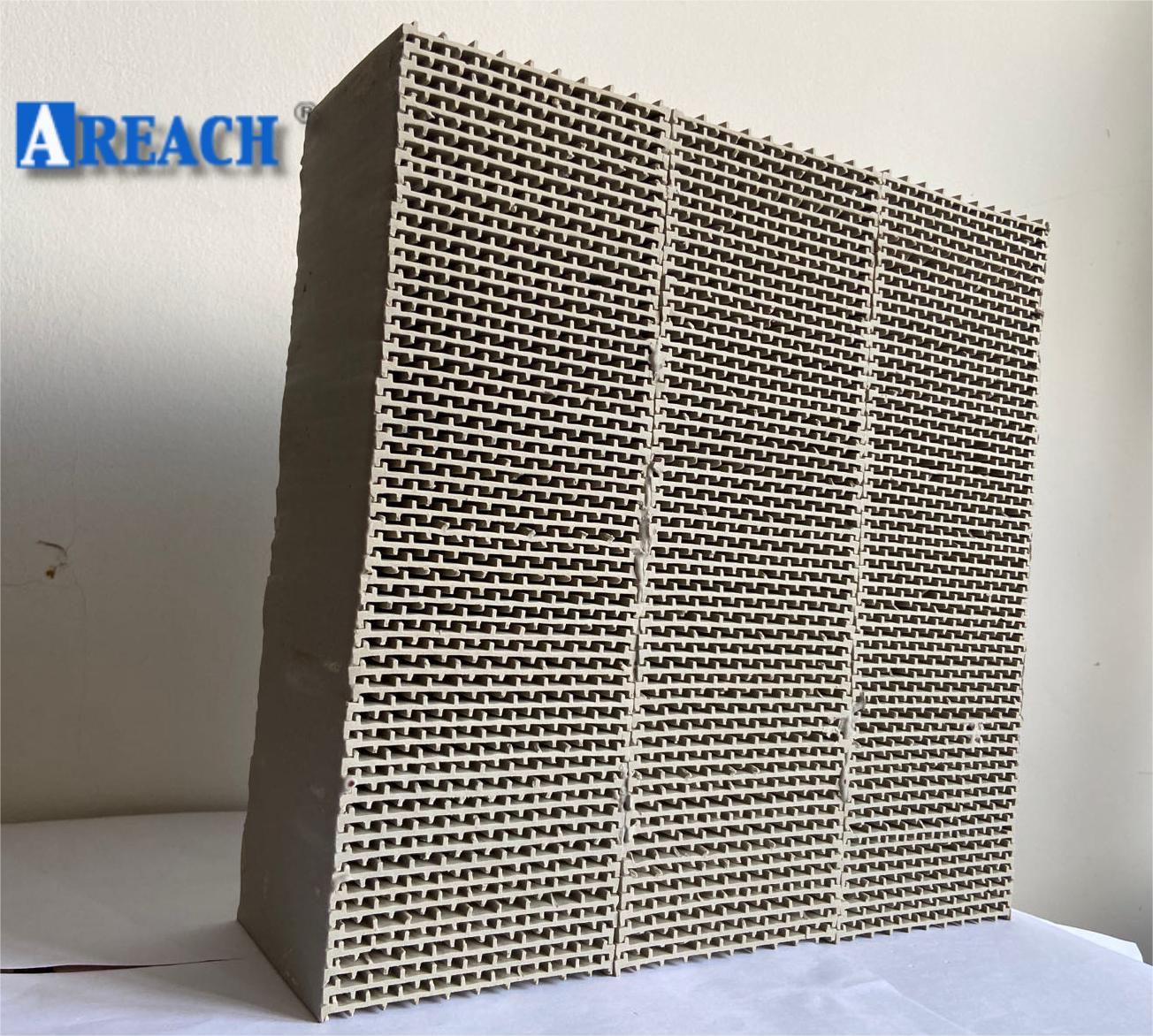

BXM blocks are a type of structured ceramic packing used in RTO applications. These combined honeycomb ceramics revolutionize the traditional single-channel form of ceramic monolith. Through unique toothed structures and combined designs, BXM blocks significantly reduce clogging and thermal shock issues. This enhances the heat recovery efficiency of RTO systems, achieving energy savings and allowing the use of smaller, lower-cost blower motors, smaller canisters, and less structured ceramic media.




Brief

Material	Size Available	Application
Normal Ceramic	305*305*102mm 102*102*102mm	RTO for industry, air pollution control equipment, VOCs Treatment




Physical Property


Item	BXM-125	BXM-160	BXM-180	BXM-200
Bulk density(kg/m³)	800	920	997	1076
surface area(m2/m3)	425	521	590	670
Void fraction(%)	65	60	56	54
Heat Capacity(J/Kg.K)	900-1100	900-1100	900-1180	900-1200
Material density	2.24-2.35g/cm3
Max.Temp	1190℃
Water Absorption	＜1%(ASTM C373)
Acid resistance	＜4% weight loss(ASTM C279)




Chemical Composition

Chemical Composition	Range in %
AL2O3/ Alumina Oxide	21-31
SiO2/Silicon Oxide	62-72
Fe2O3	≤2.0
Others	≤4.0




Why Choose BXM Blocks ？

1.Structural design advantages, parallel slotting design forms interconnected channels, and the void ratio is large

2.Good thermal shock resistance, good thermal conductivity, high mechanical strength

3.Strong anti-blocking performance, prolong service life.

4.Reduced pressure and reduced operating costs.

5.Easy and convenient installation, create turbulent flow, improve heat recovery efficiency and removal efficiency

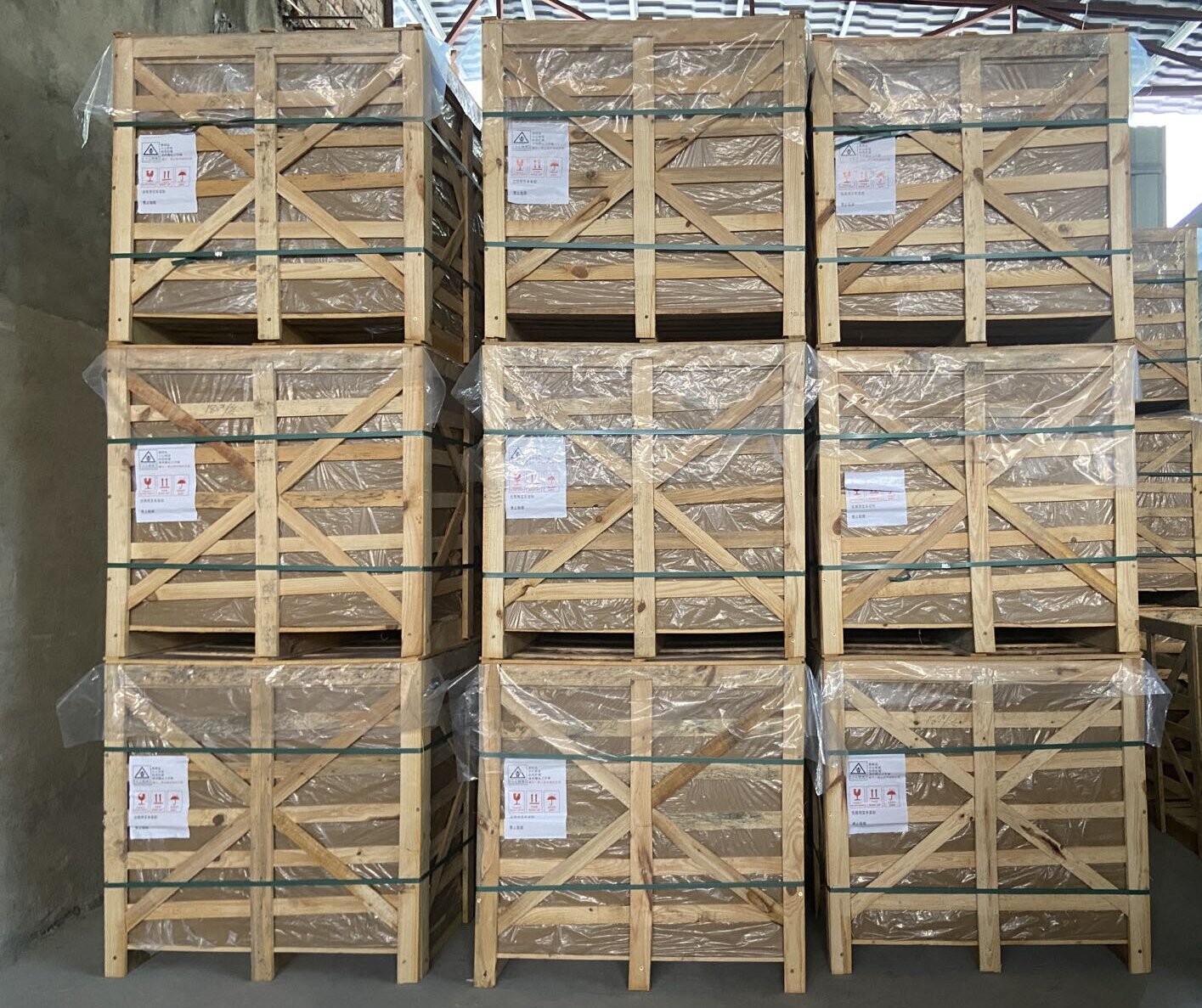

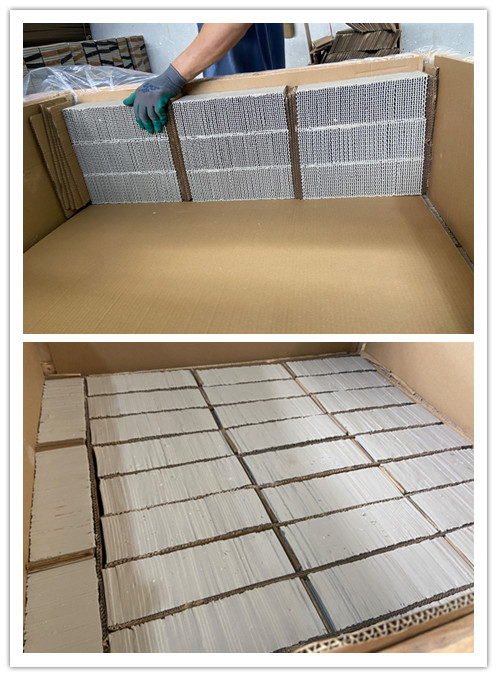

Package










Installation Tips.

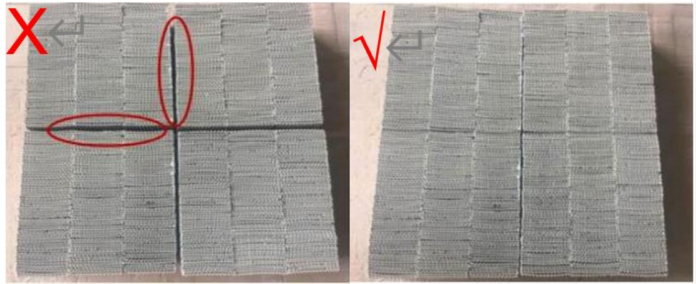

1. Each BXM blocks should be flush with the adjacent blocks, leaving no gaps between them. Each layer of BXM blocks should start from one wall of the furnace and be installed continuously to the opposite wall of the furnace.

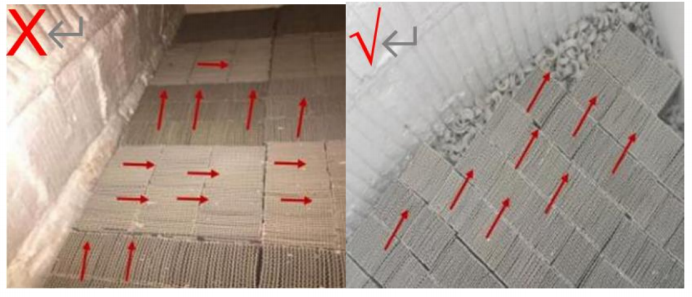

2. Multi-Layer Ceramic Media in the same layer should be placed in the same direction, ensuring that all ceramic blocks are parallel to each other.



The adjacent upper layer of BXM blocks should be installed in the same manner, starting from the opposite diagonal walls of the furnace. They should be installed along the diagonal and rotated 90°, ensuring that the ceramic blocks in the adjacent layers are perpendicular to each other.
