Product Detail

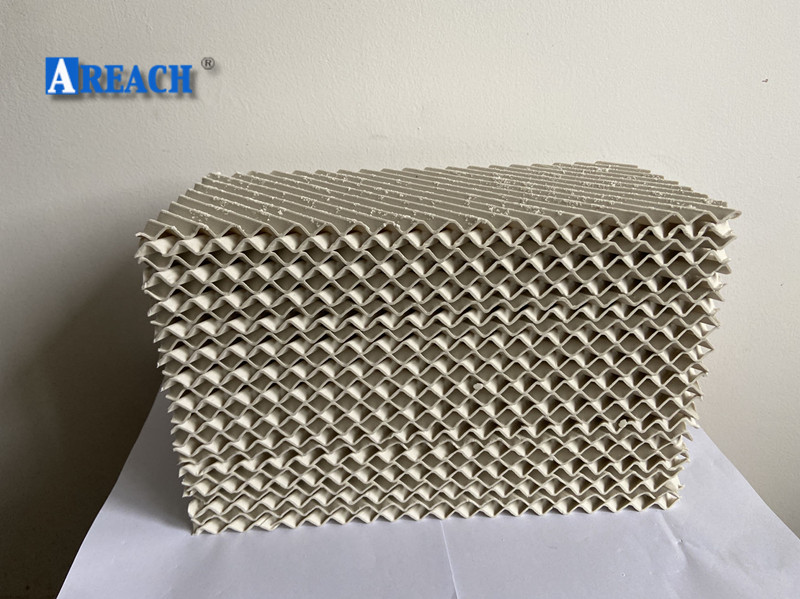

Ceramic corrugated structured packing(also known as RTO corrugated ceramic heat recovery media) is one of the commonly used heat exchange media/packing elements in RTO (regenerative thermal oxidizer).

It boasts several advantages, including large specific surface area, low resistance, good thermal conductivity, and greater resistance to fouling .These characteristics enable it to facilitate rapid heat exchange and achieve significant energy savings.Due to its high chemical resistance and thermal stability, it is suitable for the treatment of various volatile organic compounds (VOCs) and odorous emissions in RTO systems to recover thermal energy. Therefore, this corrosion-resistant media is undoubtedly worth choosing.




Quick Details

Material	Size Available	Application
Alumina/ Normal Ceramic	300*150*150mm 300*200*150mm 300*200*200mm	RTO for industry, air pollution control equipment, Sulfuric Acid Plants




Physical Property

Item	Value
Water absorption	<0.5%
Specific gravity	2.5g/cm3
Acid resistance	>99.5%
Alkali resistance	>90%
Max operating temp.	800℃
Moh’s Hardness	>7 scale
Thermal Shock	3times (200℃)




Chemical Composition

Al2O3	SiO2	Fe2O3	CaO	MgO	K2O+Na2O	Other
>23%	>72%	<0.5%	<0.5%	<0.5%	<3%	<0.5%

We can customize products in different sizes and materials per customer requirements.





Dimension and other physical properties

Type	Thickness (mm)	Surface area (m2/m3)	Free volume (%)	Wave span (mm)	Wave height (mm)	Pressure Drop (mm Hg/m)	Bulk density (kg/m3)
700	0.9-1.1	700	72	6±0.5	4±0.5	6	650±40
550	0.9-1.1	550	74	8±0.5	5±0.5	5.5	620±40
450	1.0-1.3	450	75	12±0.5	6±0.5	4.5	520±40
400	1.0-1.3	400	76	14±0.5	7±0.5	4	500±40
350	1.2-1.5	350	78	16±0.5	8±0.5	3	470±30
250	1.2-1.5	250	82	18±0.5	11±0.5	2.5	420±30
150	1.5-2.0	150	85	34±0.5	17±0.5	2	350±30

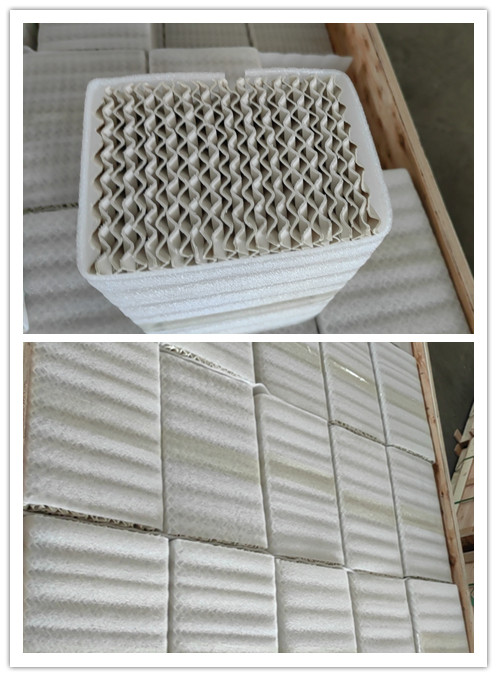

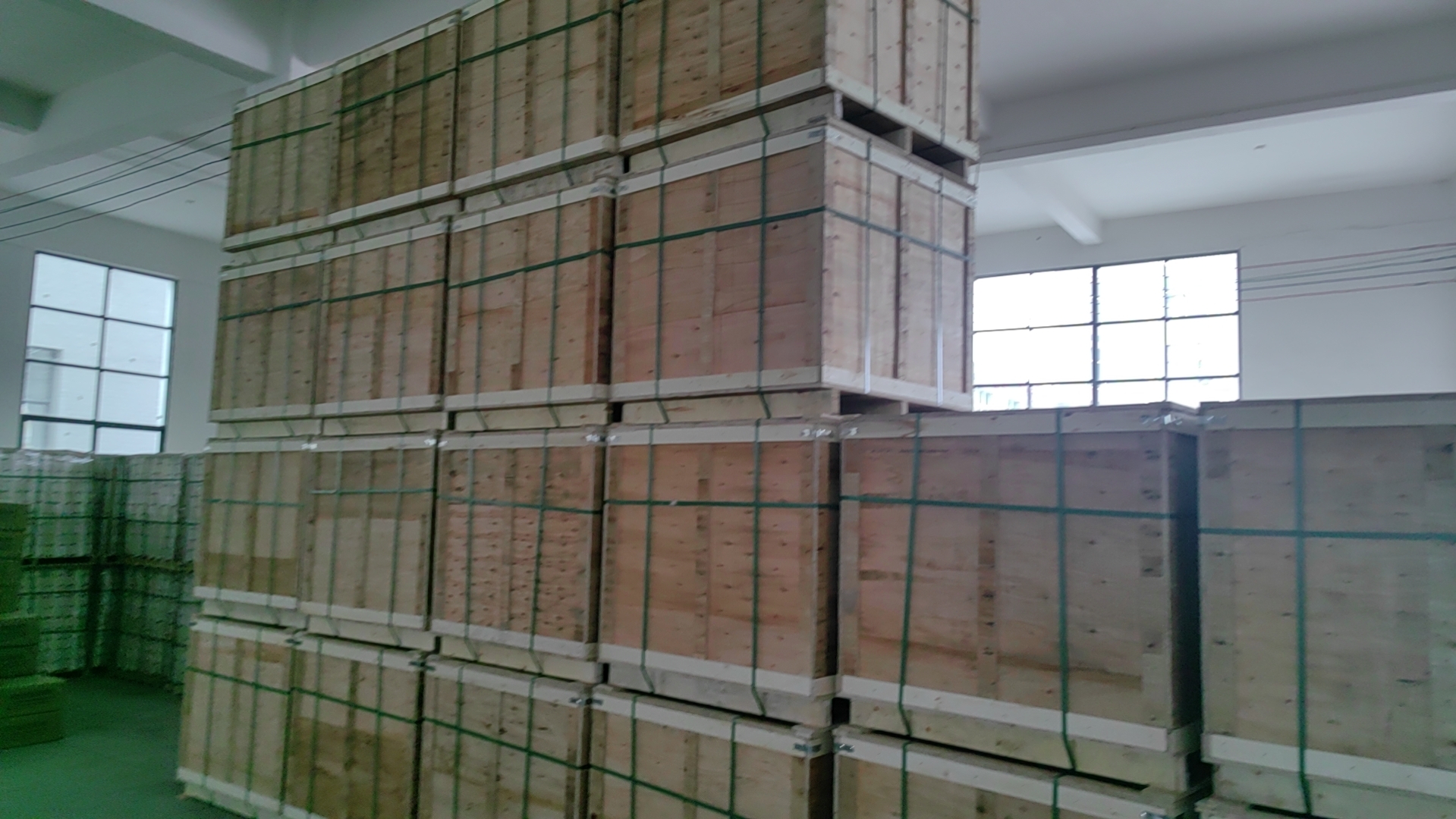

Package
