Product Detail

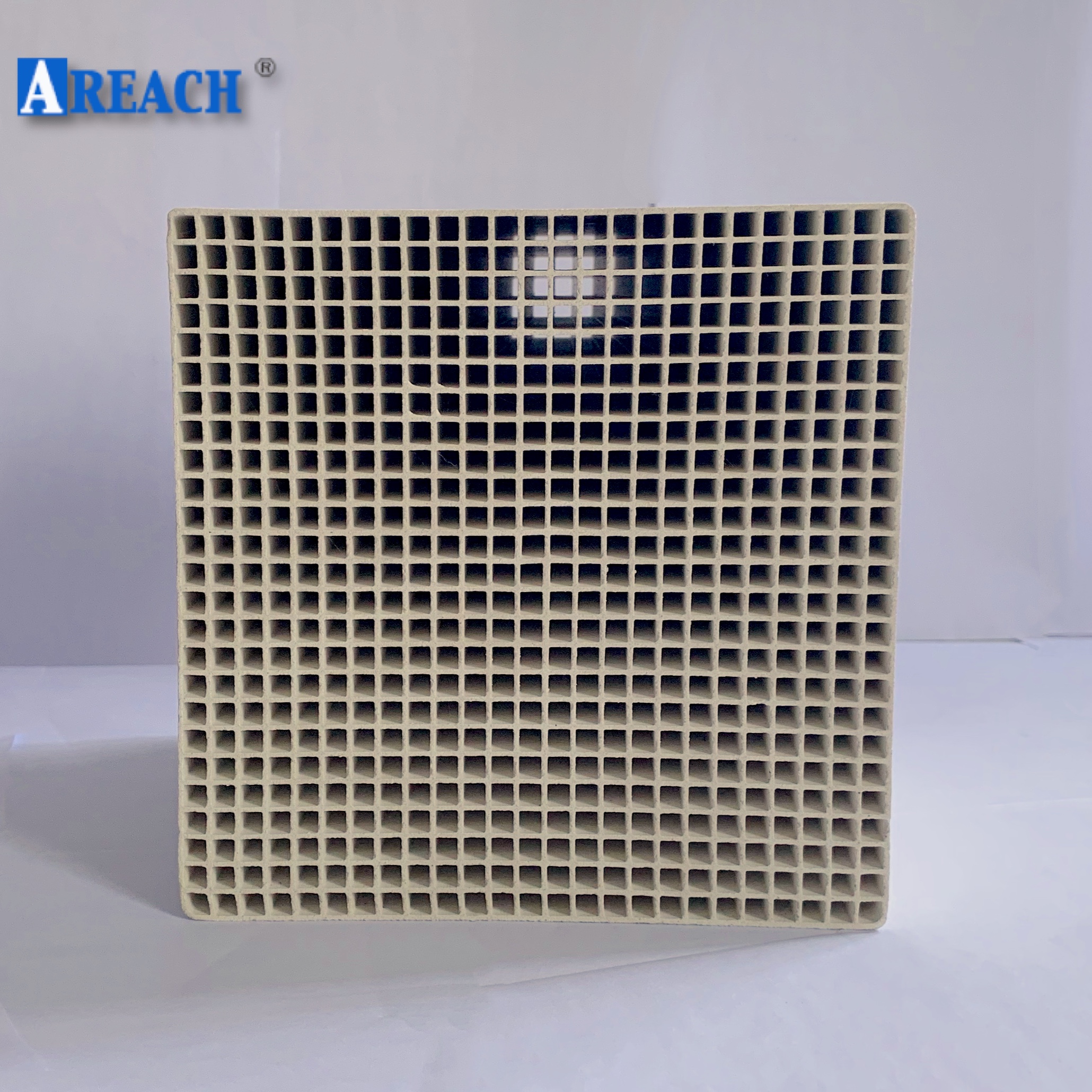

As a heat exchange media with good crack resistance materials ,Mullite Block are superior in better thermal shock resistance , higher AL content and lower coefficient of heat expansion comparing with alumina and dense alumina material, which has been widely used in RTO equipments for Odorous emission treatment.

Mullite block is a ceramic filled heat recovery media that is placed in a formal arrangement, rather than randomly dumped. which can meet and exceed your emissions standards while increasing reliability and profitability in RTOs.




Quick Details

Material	Regular sizes	Cell	Application
Mullite	100*100*100MM 100*150*150MM 150*150*150MM 150*150*300MM	25*25	RTO equipment, VOCs treatment






Physical property

Mullite Block	Range in	Unit
Density	2.0-2.5	G/CM3
Water Absorption	15-25	%
Coefficient of thermal Expansion(20-800℃)	≤5	x10-6k-1
Specific Heat(20-1000℃)	1000-1150	J/KG.K
Thermal Conductivity (20-1000℃)	1.5-2.0	W/M.K
Impact Thermal Resistance	≥350	℃/MIN
Strength ( A Axis )	≥28	MPA
Compressive ( B Axis )	≥8





Chemical Composition

Material Chemical	Rang In %
Alumina Oxide	60-70%
SiO2/Silicon Oxide	25-35%
MgO	0-1%
Fe2O3+ TiO2	1-3%
Others	<5%





Advantages

1. Excellent thermal conductivity .

2. With 65% AL content.

3. Excellent Thermal shock resistance.

4. Low pressure drop.

5. Low maintenance  costs.

6. Higher working temperature up to 1450℃.

7. Heat storage.

8. Lower coefficient heat of expansion.







Package










Certificate













Installation Tips.




1.Try to put the blocks in order when you install the blocks.

2. Keep expansion gap every 1 centimeter per 1meter evenly distributed when place the blocks.
