Product Detail

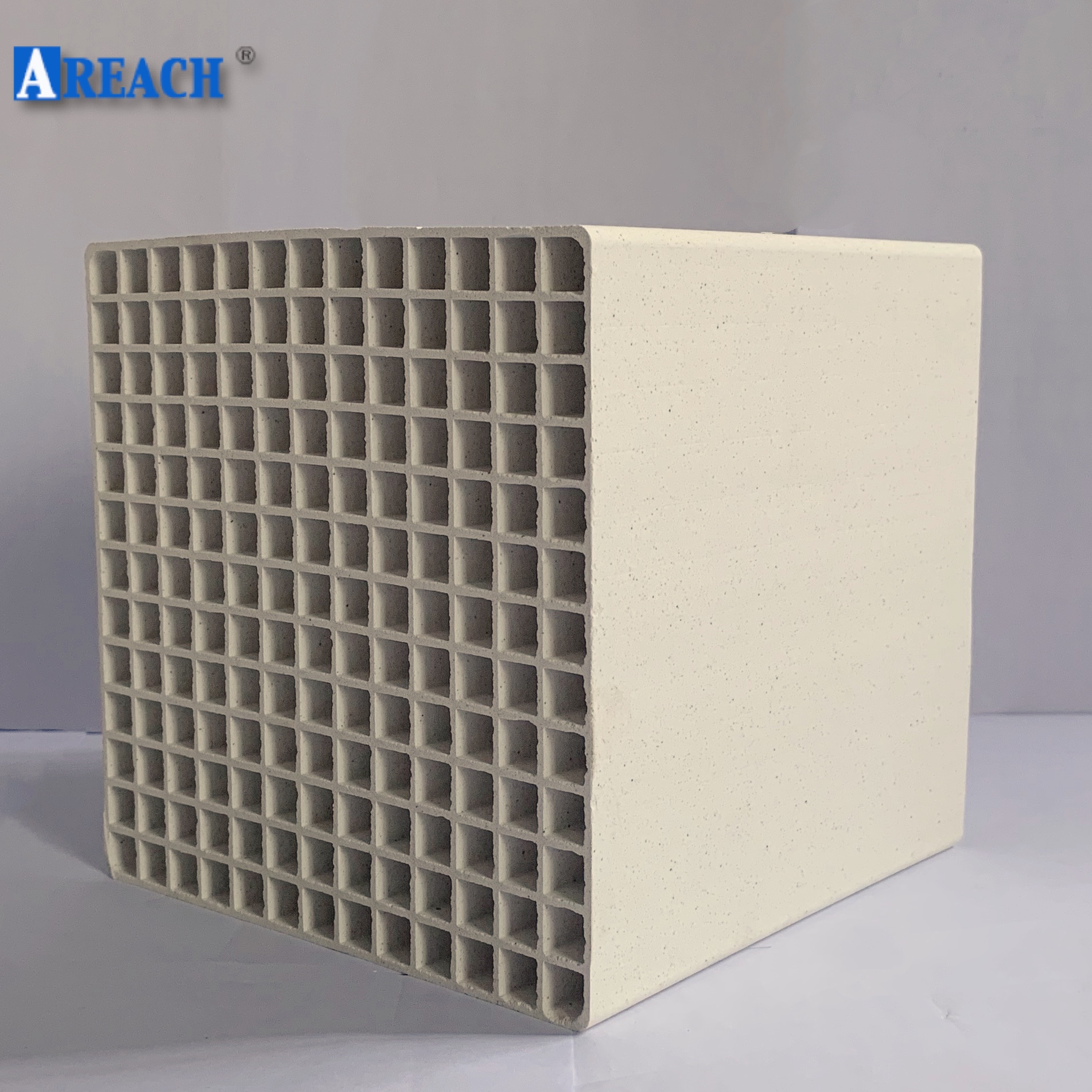

As a porous ceramic packing ,Mullite Block are superior in better thermal shock resistance , higher AL content and lower coefficient of heat expansion, ultra low pressure comparing with other materials. It has been widely used in high thermal shock applications to adopting direct heat exchange through heat media, especially RTO equipments among industrial fields.

Meanwhile heat released from the oxidation of the VOCs is also captured in the heat recovery ceramic media beds. This further helps reduce supplement fuel use.




Quick Details

Material	Regular sizes	Cell	Application
Mullite	100*100*100MM 100*150*150MM 150*150*150MM 150*150*300MM	13*13	RTO equipment, VOCs treatment






Physical property

Mullite Block	Range in	Unit
Density	2.0-2.5	G/CM3
Water Absorption	15-25	%
Coefficient of thermal Expansion(20-800℃)	≤5	x10-6k-1
Specific Heat(20-1000℃)	1000-1150	J/KG.K
Thermal Conductivity (20-1000℃)	1.5-2.0	W/M.K
Impact Thermal Resistance	≥350	℃/MIN
Strength ( A Axis )	≥28	MPA
Compressive ( B Axis )	≥8





Chemical Composition

Material Chemical	Rang In %
Alumina Oxide	60-70%
SiO2/Silicon Oxide	25-35%
MgO	0-1%
Fe2O3+ TiO2	1-3%
Others	<5%





Advantages

1. Excellent thermal conductivity .

2. With 65% AL content.

3. Excellent Thermal shock resistance.

4. Low pressure drop.

5. Low maintenance  costs.

6. Higher working temperature up to 1450℃.

7. Heat storage.

8. Lower coefficient heat of expansion.







Package










Certificate













Installation Tips.




1.Try to put the blocks in order when you install the blocks.

2. Keep expansion gap every 1 centimeter per 1meter evenly distributed when place the blocks.
