Product Detail

Honeycomb ceramics are used for the treatment of industrial exhaust flows loaded with various organic and inorganic contaminants.

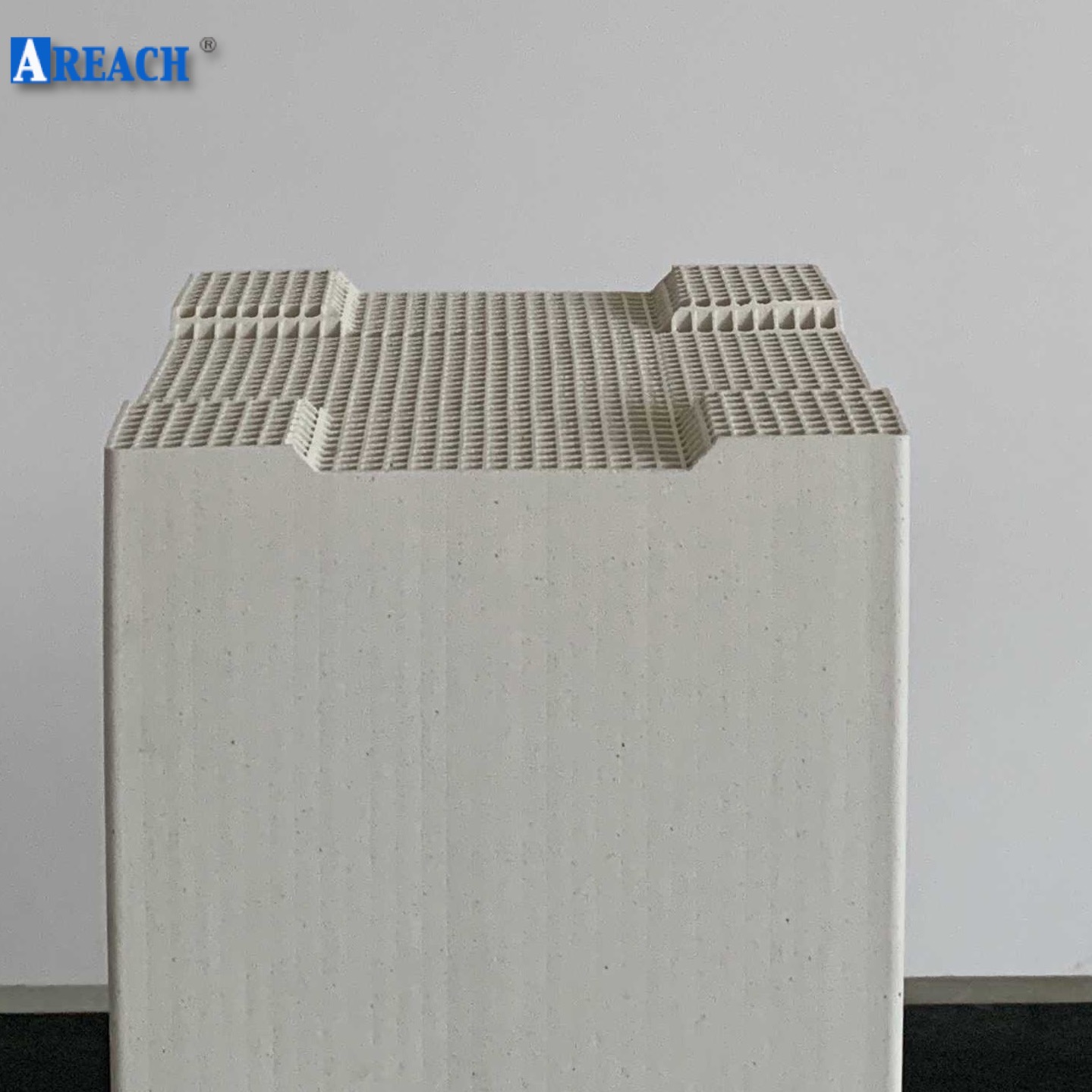

Cordierite block (so called the honeycomb ceramic ) as heat transfer media is the key part for heat storage HTAC(High Temperature Air Combustion) technology,  Ceramic media is utilized to seize heat and launch heat to the polluted airstream.











Quick Details

Material	Regular sizes	Cell	Application
Cordierite	100*100*100MM 100*150*150MM 150*150*150MM 150*150*300MM	32*32	Air pollution control equipment VOCs treatment RTO for Industry.






Physical Property

Cordierite Block	Range	Unit
Density	1.5-1.9	G/CM3
Water Absorption	15-25	%
Coefficient of thermal expansion(20-800℃)	≤3	x10-6k-1
Specific Heat(20-1000℃)	900-1150	J/KG.K
Thermal Conductivity(20-1000℃)	1.2-1.8	W/M.K
Impact Thermal Resistance	≥350	℃/Min
Strength ( A Axis )	≥29	MPA
Compressive ( B Axis )	≥6







Chemical Composition

Material Chemical Composition	Range In %
AL2O3/Alumina Oxide	28-38%
SiO2/Silicon Oxide	45-55%
MgO	11-14%
Others	<5%




Advantages

Lighter unit weight than other materials.

Whiter color than other materials.

Widely used in overseas markets.

Long service life.

Low maintenance costs.

High thermal shock resistance.

Less inland transportation costs.

Good Thermal Conductivity .

Good Thermal shock resistance .




Package and Logistics









Certificate







FAQ

Q: What is the RTOs?

A: Regenerative Thermal Oxidizers (RTOs) are designed to efficiently destroy Volatile Organic Compounds (VOCs), Hazardous Air Pollutants (HAPs) and other, sometimes odorous emissions that are released during various industrial and/or manufacturing processes.




Q: What is the standard packaging for Alumina blocks ?

A: Carton board +wrapping+ pallet.
